Digital Pull Off Adhesion Tester

Get a Price/Quote

MOQ : 1 Piece

Digital Pull Off Adhesion Tester Specification

Measurement Range
0 - 20 MPa

Capacity
Up to 5000N

Frequency
50/60Hz

Application Media
Coating on metal, concrete, wood and other substrates

Temperature Range
0°C to 50°C

Diameter
Base diameter 20mm and 50mm

Resolution
0.01 MPa

Humidity %
Up to 90% RH

Connectivity Type
USB interface for data export

Pressure Range
0 to 20 MPa

Equipment Type
Digital Pull Off Adhesion Tester

Protection
IP54 (splash proof)

Sensor Type
Strain Gauge Load Cell

Material
Stainless Steel and high impact plastic

Power Supply
220V AC, 50/60Hz

Power Consumption
Approx. 20W

Accuracy
±1% full scale

Display Type
Digital LCD

Range
0 to 20 MPa

Operation Mode
Manual and Automatic

Dimensions
250 mm x 160 mm x 100 mm

Weight
Approx. 2.5 kg

Peeling Speed
Controlled 1 mm/min

Data Output
USB and PC compatible

Test Disc Materials
Aluminium, Steel

Compliance
ASTM D4541, ISO 4624

Memory Storage
Stores up to 300 test results

Calibration
Factory calibrated, calibration certificate included

Battery Type
Rechargeable Li-ion (optional)

Digital Pull Off Adhesion Tester Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
500 Pieces Per Day

Delivery Time
1 Days

Main Domestic Market
All India

About Digital Pull Off Adhesion Tester

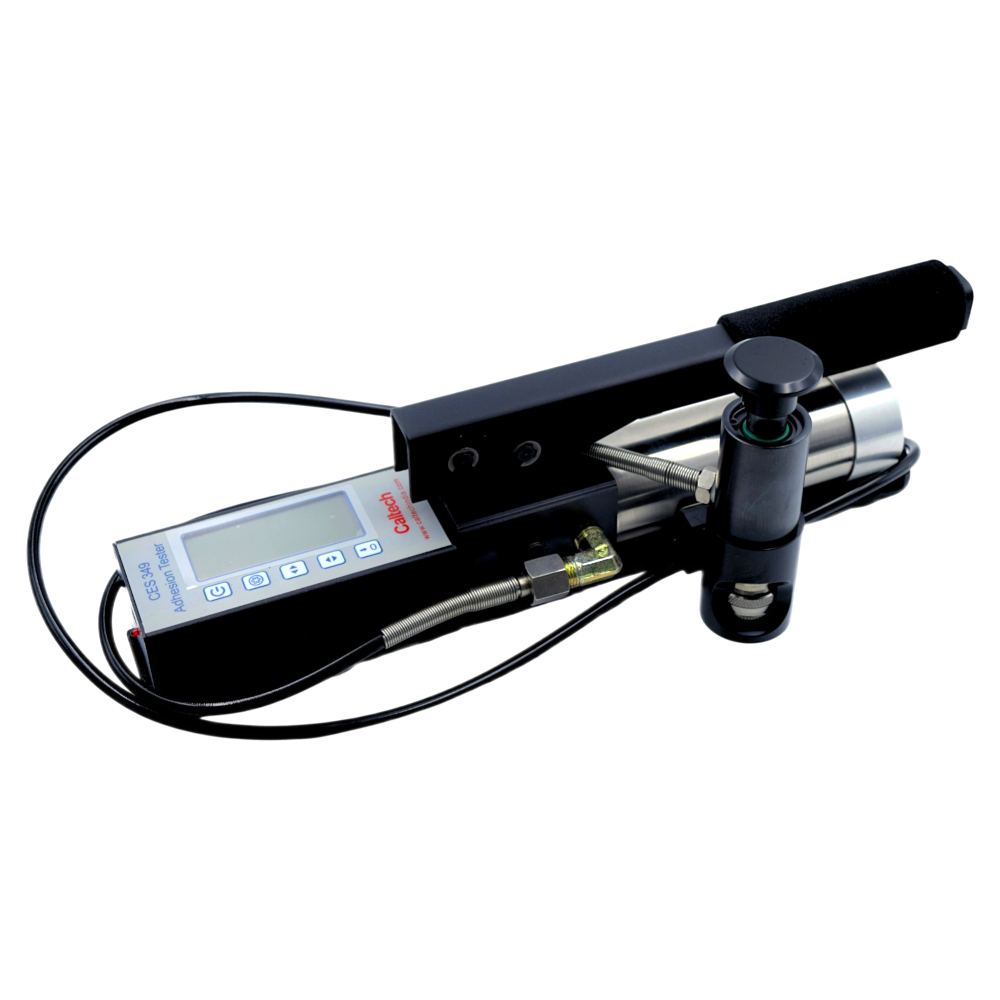

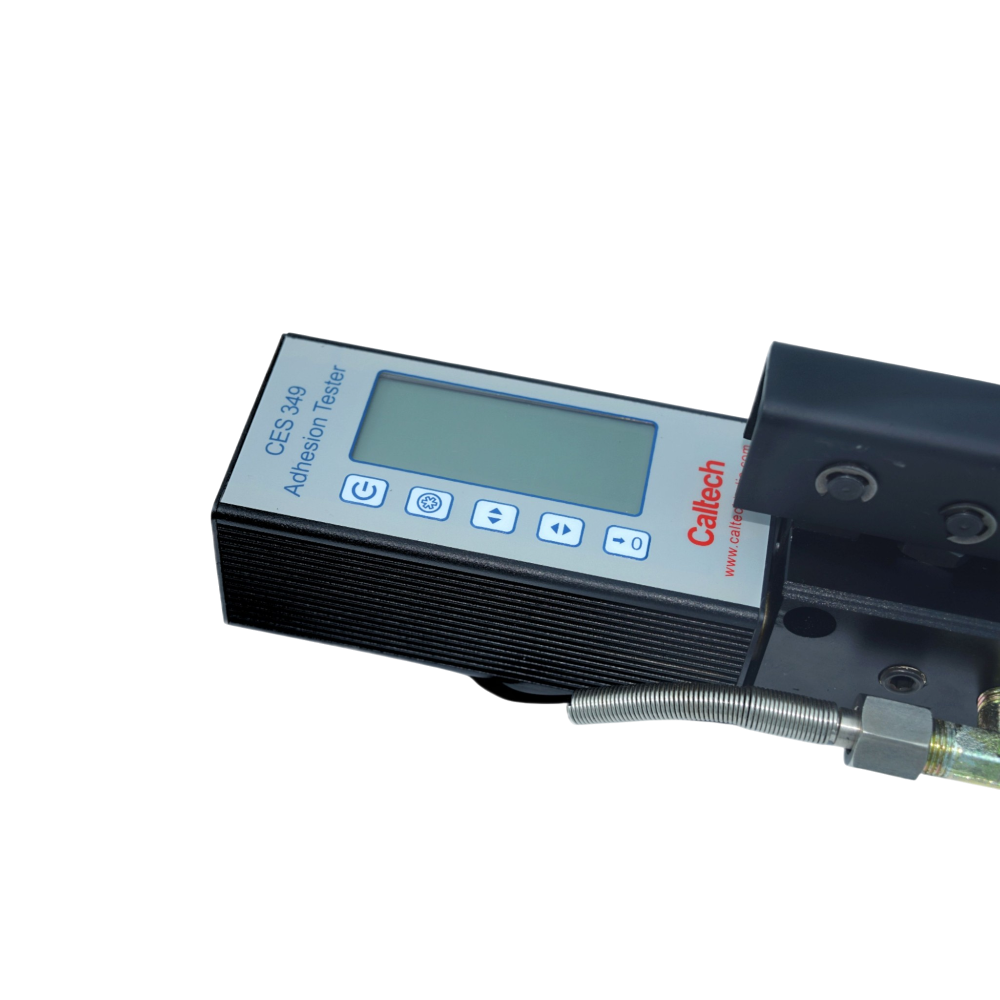

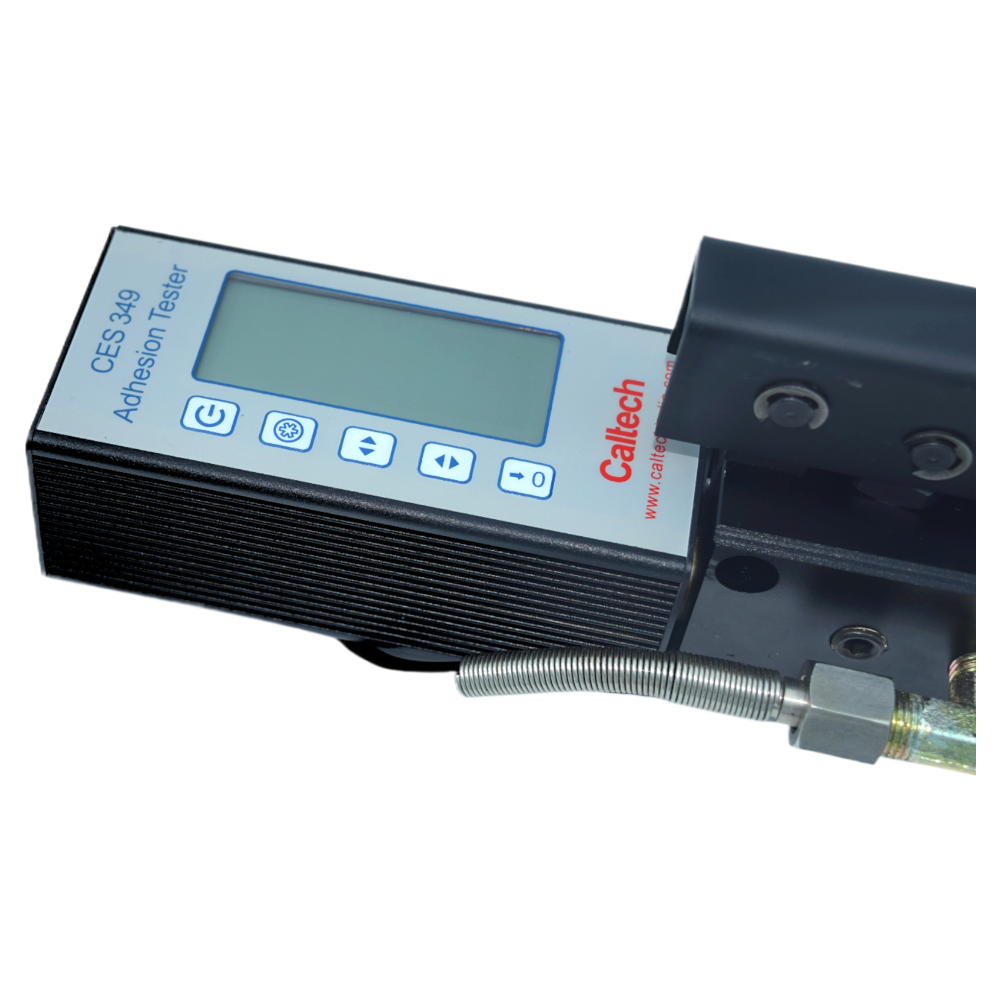

Caltech Instruments Pvt Ltd offers CES 349 - Digital Pull Off Adhesion Tester. CES 349 Digital Pull Off Adhesion Tester is a portable, hand-operated instrument which is used to measure the force required to pull a specified test diameter of coating away from its substrate using hydraulic pressure. The pressure is displayed on a digital LCD and represents the coating's strength of adhesion to the substrate. It evaluates the adhesion (pull-off strength) of a coating by determining the greatest tensile pull-off force that it can bear before detaching. Breaking points, demonstrated by fractured surfaces, occur along the weakest plane within the system consisting of dolly, adhesive, coating layers and substrate

Digital Pull-Off Adhesion Tester is a portable, hand-operated instrument which is used to measure the force required to pull a specified test diameter of coating away from its substrate using hydraulic pressure. The pressure is displayed on a digital LCD and represents the coatings strength of adhesion to the substrate. It evaluates the adhesion (pull-off strength) of a coating by determining the greatest tensile pull-off force that it can bear before detaching. breaking points, demonstrated by fractured surfaces, occur along the weakest plane within the system consisting of dolly, adhesive,coating layers and substrate. Quality adhesion tester now available in India.

In India, we have various customers from Mumbai, Delhi, Bangalore, Chennai, Hyderabad, Ahmedabad, Kolkata, Surat, Pune, Jaipur, Lucknow, Kanpur, Nagpur, Visakhapatnam, Indore, Bhopal, Patna, Vadodara, Ghaziabad, Ludhiana, Coimbatore, Madurai, Nashik, Srinagar, Aurangabad, Dhanbad, Allahabad and Ranchi in India.

Precise and Reliable Adhesion Measurement

With 1% full scale accuracy and a resolution of 0.01 MPa, this tester delivers consistent, traceable results for quality assurance across industries. The strain gauge load cell and digital LCD display ensure straightforward and accurate readings during every test.

Comprehensive Data Management

Users can store up to 300 test results within the device and conveniently export data via USB to PC, simplifying documentation and analysis. The memory feature supports efficient workflows for laboratories and field inspections without data loss.

Robust and User-friendly Design

Produced from stainless steel and high-impact plastic, the tester is both lightweight (approx. 2.5 kg) and splash-proof (IP54 rated). The intuitive operation modesmanual and automaticaccommodate varied testing scenarios for dealers, exporters, and service providers.

FAQs of Digital Pull Off Adhesion Tester:

Q: How do I operate the Digital Pull Off Adhesion Tester for optimal results?

A: To achieve optimal results, select the appropriate operation modemanual or automaticusing the controls. Place the test disc (aluminium or steel) on the prepared coating surface, set the desired parameters, and initiate the test. The controlled peeling speed of 1 mm/min ensures consistency, and results display instantly on the digital LCD.

Q: What types of coatings and substrates can be tested with this equipment?

A: The tester is designed for measuring adhesion on coatings applied to metal, concrete, wood, and other substrates. Its versatility is suited for industrial and laboratory environments where precise assessment of coating performance is required.

Q: When should I recalibrate the adhesion tester, and is a certificate provided?

A: The tester comes factory calibrated with a certificate included, ensuring accuracy upon delivery. Calibration intervals depend on your quality protocols; however, periodic recalibration is recommended, particularly for critical testing or after extensive usage.

Q: Where can I export stored test data from the device?

A: Test results can be quickly exported through the USB interface, making it compatible with most PCs. This feature supports effortless data archiving, sharing, and reporting for compliance and record-keeping.

Q: What is the testing process like for this adhesion tester?

A: The process involves attaching the appropriate disc to the coated substrate, adjusting the settings, and starting the pull-off test. The strain gauge load cell measures force until coating detachment, recording data that is displayed on the LCD and optionally stored for future reference.

Q: How does using this equipment benefit my quality assurance procedures?

A: This tester offers accurate, repeatable measurements aligned with ASTM D4541 and ISO 4624 standards. Its robust design, easy operation, and data management features facilitate effective quality control, enhance consistency, and support regulatory compliance in production and inspection.
