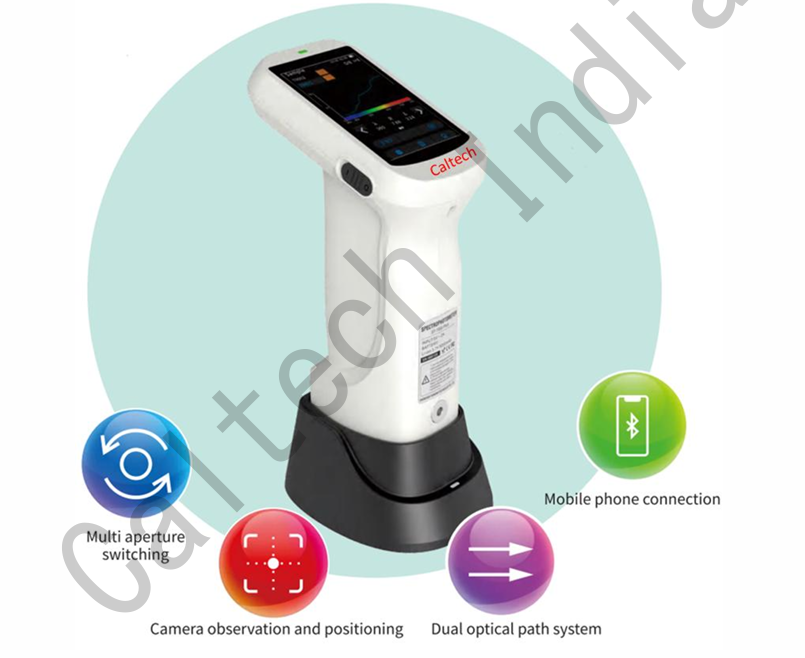

CES 521 -Portable Array Spectrophotometer

Send Inquiry

Request To Call Back

CES 521 -Portable Array Spectrophotometer

Name: CES 521 -Portable Array Spectrophotometer
Brand: CALTECH INSTRUMENTS PRIVATE LIMITED
Price: 10.0 INR
Availability: InStock

Price 10.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

CES 521 -Portable Array Spectrophotometer Specification

Measuring Units
Reflectance (%)

Model
CES 521

Stability
Stable with dual optical path system

Housing Material
ABS Plastic

Connecting Type
Bluetooth, USB

Response Time
Rapid (<2 seconds)

Output
Bluetooth, USB

Equipment Type
Portable Array Spectrophotometer

Capacity
Single sample at a time

Input
Touchscreen, side button

Application Media
Portable analysis, surface color measurement

Connectivity Type
Bluetooth, USB

Signal Type
Digital

Sensitivity
High

Connector
USB charging port

Language
Multilingual supported

Resolution
High (exact value not specified)

Sensor Type
Array spectrophotometric sensor

Cut Size
Multi aperture switching available

Color
White

Measurement Range
400 nm - 700 nm

Mounting
Handheld/Portable

Material
ABS High-impact plastic

Power Supply
Rechargeable battery operated

Accuracy
High-precision measurement (exact value not specified)

Display Type
LCD Touchscreen display

Fast Charging Base
Provided with fast charging dock

Aperture Switching
Multi aperture switching for various sample sizes

Observation & Positioning
Integrated camera for observation and spot positioning

Data Storage
Internal memory for sample data

Mobile Connectivity
Mobile phone connection via Bluetooth

Optical System
Dual optical path for improved accuracy

Sample Tracking
Camera observation and digital sample tracking

Portability
Compact, lightweight, and easy to carry

User Interface
Touchscreen with intuitive graphical display

CES 521 -Portable Array Spectrophotometer Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

About CES 521 -Portable Array Spectrophotometer

Caltech Instruments Pvt Ltd offers a new Portable Array Spectrophotometer. The CES 521/3 adopts a built-in large area silicon photodiode array (22 sets of double row) sensor, which has excellent repeatability and platform difference, and the measurement data is continuously stable, accurate and reliable. Repeatability of CES 521/3 array spectrophotometer, E*ab 0.018 is easily controlled within 0.018, and the difference between platforms E*ab is controlled within 0.18, with accurate measurement, which can be used for accurate color analysis and transmission in the laboratory.

Features:

Applicable to color difference quality control in plastic electronics, paint and ink, textile and garment printing, printing, ceramics and other industries

Support spectral reflectance, CIE Lab, CIE LCh, HunteLab, CIE-Luv, XYZ, Yxy, RGB, Chromatic aberration AE*ab, A E*cmc, A E*94, A E*00), Whiteness (ASTM E313-00, ASTM E313-73, ClE/ISO, AATCC, Hunter, Taube Berger Efficient Stensby), Yellowness (ASTM D1925, ASTM E313-00, ASTM E313- 73), Blackness (My, dM), Color Fastness, Color Fastness, Tint (ASTM E313-00), Color density CMYK (A, T, E, M), homochromatic heterochromatic index Milm, Munsell, hiding power, strength (dye strength, tinting power)

Efficient:

Ideal for laboratory and factory use

Multiple measuring apertures, supporting plane and curved surface measurement, measurement of small items under different conditions

Support USB cable and Bluetooth wireless transmission, data instant test and transmission, convenient and fast

The measurement is fast and accurate, and the SCI is measured at the same time. It only takes Is for SCE

Versatile Sample Handling

The CES 521's multi-aperture switching allows users to accommodate and accurately measure samples of varying sizes, enhancing its utility across different applications. Its aperture adjustment ensures that users can effortlessly switch between settings to match the requirements of each unique sample, maximizing precision and consistency.

Enhanced Observation and Tracking

An integrated camera system enables real-time observation and precise spot positioning. Digital sample tracking allows for seamless documentation of measured specimens, simplifying the measurement process and supporting improved data integrity through visual sample verification.

User-Friendly and Portable Design

Designed for mobility, the CES 521 is lightweight and easy to carry with a robust ABS plastic housing. Its LCD touchscreen display presents an intuitive graphical user interface, while Bluetooth connectivity and a rapid-charging dock further support convenient usage for on-the-go professionals.

FAQ's of CES 521 -Portable Array Spectrophotometer:

Q: How does the multi-aperture switching on the CES 521 improve measurement flexibility?

A: The CES 521 offers multi-aperture switching, allowing you to select the most appropriate aperture size based on the sample you're measuring. This feature ensures higher flexibility and precision, especially when working with varied sample dimensions or irregular shapes.

Q: What is the process for positioning samples during measurement?

A: With the integrated camera and touchscreen interface, users can observe the sample in real time and achieve precise spot positioning. This setup makes it easier to align samples accurately and track them digitally, minimizing measurement errors.

Q: When should I use Bluetooth connectivity with CES 521?

A: Bluetooth connectivity is ideal for transferring measurement data wirelessly to compatible mobile devices or computers. Use this feature when immediate data sharing, remote monitoring, or integration with a mobile workflow is required.

Q: Where can the CES 521 be utilized for best results?

A: The spectrophotometer's compact and lightweight design, along with its robust ABS plastic housing, make it suitable for laboratories, production lines, and fieldwork. It's portable enough for use in locations where bench-top instruments are impractical.

Q: What are the benefits of the dual optical path system in this spectrophotometer?

A: The dual optical path design enhances measurement accuracy and stability by compensating for potential environmental variations. This ensures more consistent and reliable readings across a range of operating conditions.

Q: How is data stored and retrieved on the CES 521?

A: The device features internal memory to store sample data directly, which can later be accessed or exported via Bluetooth or USB connections. This ensures secure data management and easy transfer for reporting or further analysis.

Q: What is the typical response time for sample measurement?

A: The CES 521 is engineered for rapid performance, delivering measurement results in less than two seconds. This swift response helps users conduct high-throughput analysis without compromising accuracy.
